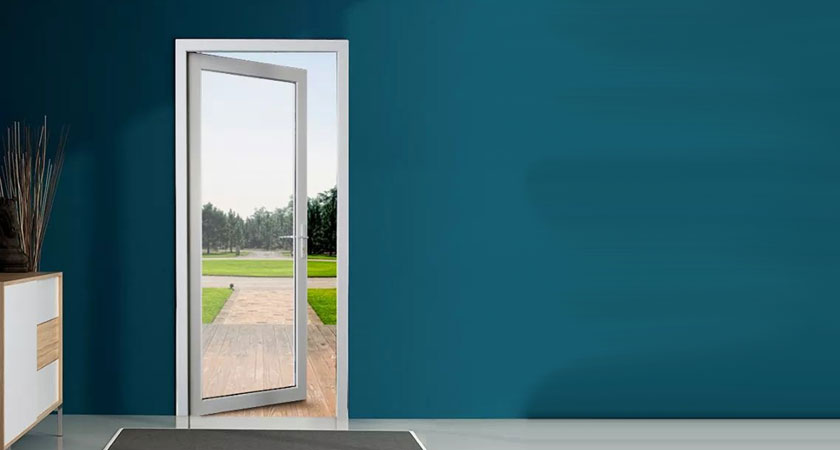

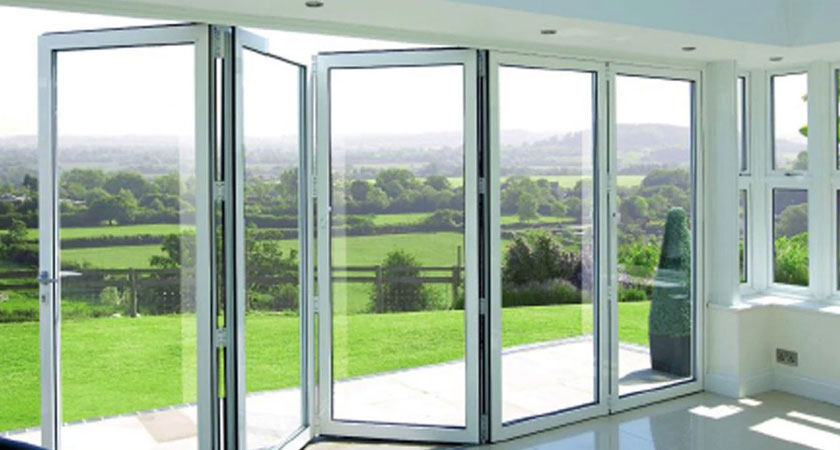

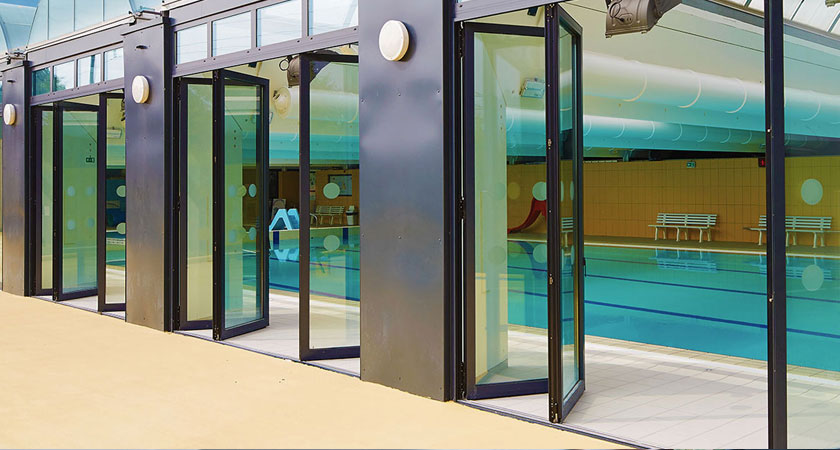

OPENABLE CASEMENT WINDOW & DOOR

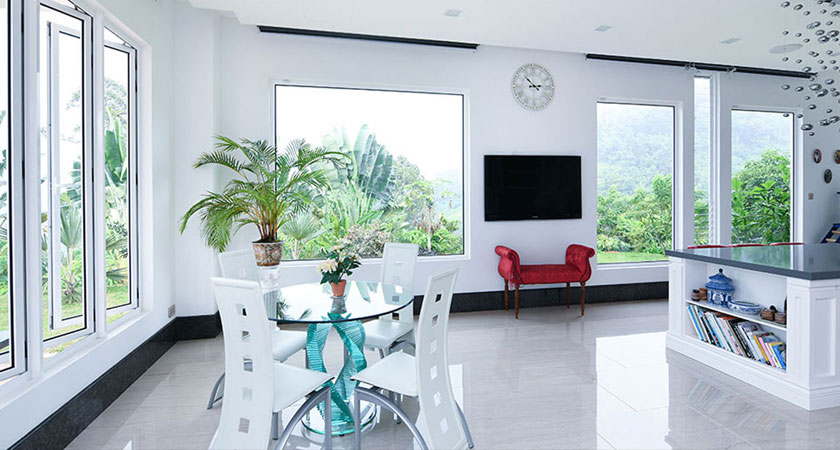

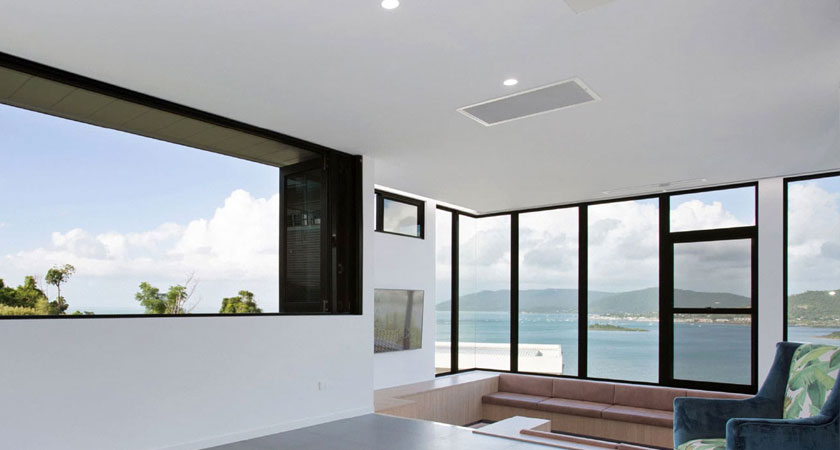

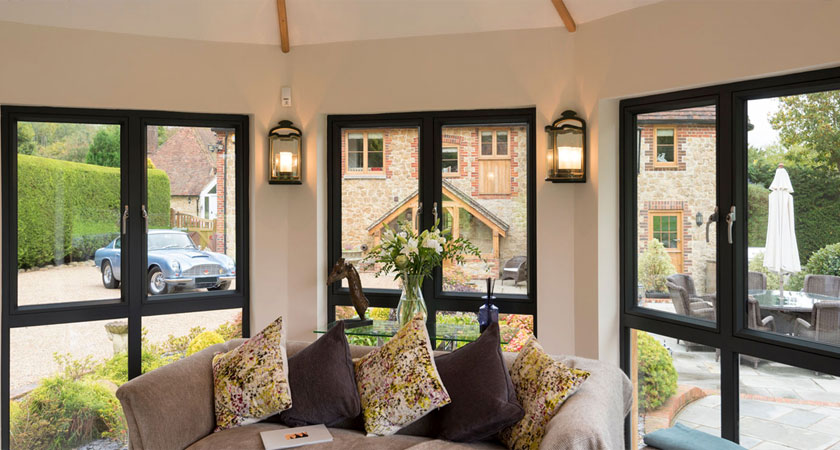

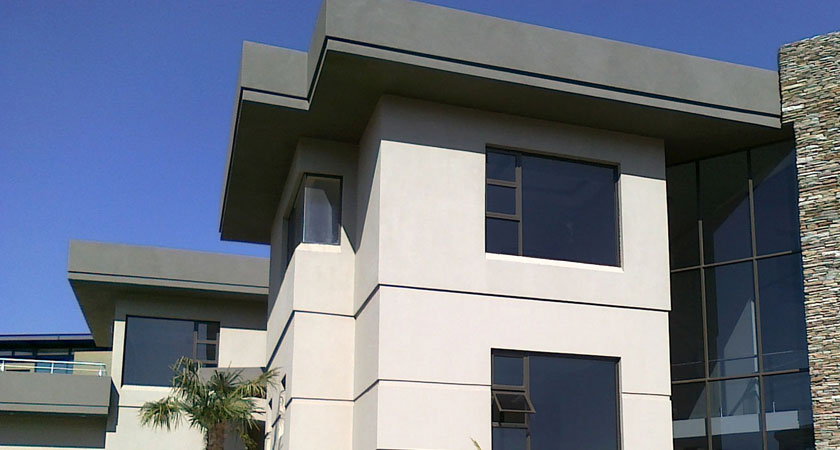

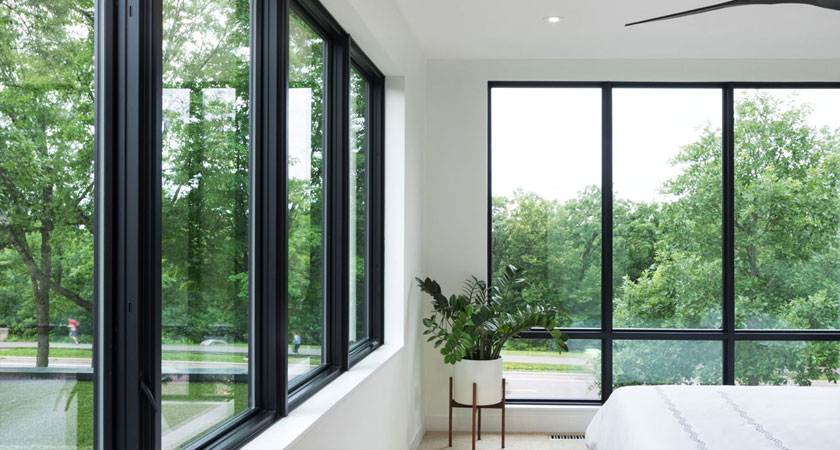

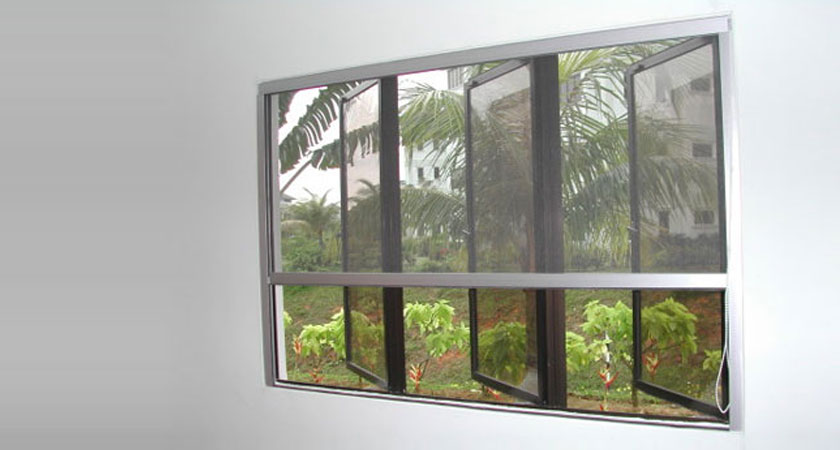

Casement Window
Casement Windows are outward opening windows. Casement Windows provide a better air tight seal and better sound insulationascomparedtoslidingwindows.it minimizes leakage in the fenestration & improves temperature regulation from inside out and outside in. In hot and humid regions where temperature rises to smothering 45 °c in Summer, it reduces the cooling loss through windows/doors, helping in standard use of the air conditioner and maintaining the temperature and avoiding overload and repetitive use of cooling system. Similarly, in cold dry climates the casements window seals shut the warmth inside with little to no leak to the outside environment and vice versa with the outside weather to the comfort of your room house, use of Double glass (DGU) should be considered to achieve better sound and heat insulation.
MRC 35 Series
- Outer Frame - 35 mm x44 mm
- Mullion - 35 mm x63 mm
- Clip - Single Glass
- Shutter Size - 35 mm x 69 mm
- Shutter Hight - 1520 mm Max.
- Shutter Width - 762 mm Max.
- Glass Thickness - 5 mm Max.
- Joiner Detail - 45°with corner connector
- Handle System - Single / Double Point
- Hinge System - Friction Stay /But Hinge
- Finish - Anodised/ Powder coated
MRC 40 Series Type 3
- Outer Frame - 40 mm x 39 mm / 40 mm x 55 mm
- Mullion - 40 mm x 54 mm / 40 mm x 70 mm
- Clip - Single Glass/Double
- Shutter Size - 40 mm x 54 mm / 40 mm x 70 mm
- Shutter Hight - 2135 mm Max.
- Shutter Width - 905 mm Max.
- Glass Thickness - 6 mm Max/Dgu- 22 mm
- Joiner Detail - 45°with corner connector
- Handle System - Single / Double Point
- Hinge System - Friction Stay/But Hinge
- Finish - Anodised / Powder coated
MRC 52 Series
- Outer Frame - 50 mm x 45 mm
- Mullion - 50 mm x 66 mm
- Clip - Single Glass/Double
- Shutter Size - 80 mm x59 mm
- Shutter Hight - 3030 mm Max.
- Shutter Width - 1062 mm Max.
- Glass Thickness - 6 mm Max/Dgu 24 mm
- Joiner Detail - 45° with corner connector
- Handle System - Single/Double Point
- Hinge System - Friction Stay/But Hinge
- Finish – Anodised / Powder coated
MRC 35 Series Type 2
- Outer Frame - 50 mm x 54 mm
- Mullion 37 mm x72 mm
- Clip - Single Glass/Double
- Shutter Size - 46 mm x 68 mm
- Shutter Hight - 2135 mm Max.
- Shutter Width - 762 mm Max.
- Glass Thickness - 5 mm Max/Dgu 20 mm Max.
- Joiner Detail - 45°with corner connector
- Handle System - Single/Double Point
- Hinge System - Friction Stay /But Hinge
- Finish – Anodised / Powder coated
MRC 34 Series Type 3
- Outer Frame - 34 mm x 44 mm
- Mullion - 34 mm x 57 mm
- Clip - Single Glass
- Shutter Size - 34 mm x44 mm
- Shutter Hight - 1220 mm Max.
- Shutter Width - 605 mm Max.
- Glass Thickness - 5 mm Max.
- Joiner Detail - 45° with Clit Angle punching System
- Handle System - Single Point
- Hinge System - Friction Stay
- Finish - Anodised/ Powder coated
